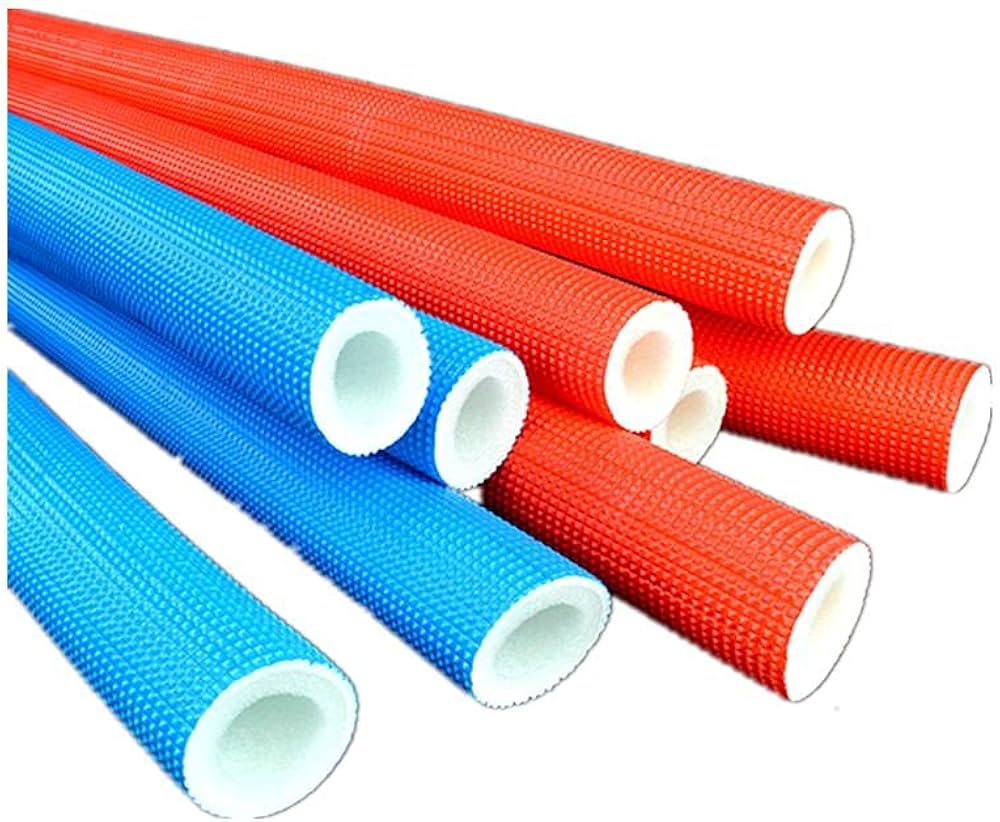

Insulated multilayer tubes

Copper & Hardware’s insulated multilayer pipes are designed to optimize the thermal performance of heating, plumbing, and air conditioning systems. Thanks to their composite structure combining cross-linked polyethylene (PE-RT), aluminum, and an expanded foam insulation layer, they offer excellent resistance to high temperatures and significantly reduce heat loss. This design also helps limit noise transmission, ensuring improved acoustic comfort.

• Structure: PE-RT / Aluminum / PE-RT with expanded foam insulation
• Available diameters: 16, 20
• Lengths: Coils 50 meters
• Insulation thickness: 6 or 10 mm
• Standards: CSTB, NF545, ACS certified
• Maximum service temperature: Up to 95 °C
• Maximum pressure: 10 bar
• Available colors: Red and blue for easy circuit identification

• Heating: Radiator networks, underfloor heating systems
• Sanitary plumbing: Hot and cold water distribution

• Excellent thermal insulation: Reduces heat loss and saves energy

• Corrosion resistance: Increased system longevity

• Flexibility: Easy installation, even in confined spaces

• Compatibility: Suitable for press-fit or compression fittings

• Versatility: Suitable for both exposed and concealed installations

• Multilayer fittings: Elbows, tees, couplings, straight connectors
• Tools: Press tool, pipe cutter, calibrator-deburrer
• Additional insulation: Insulating sleeves, thermal sheaths
