Normes : EN 12735-1 EN 1057

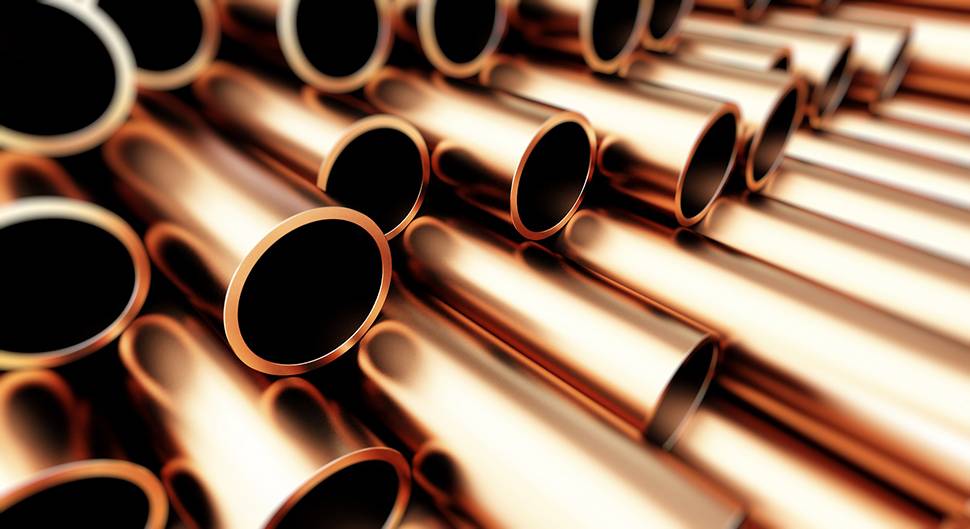

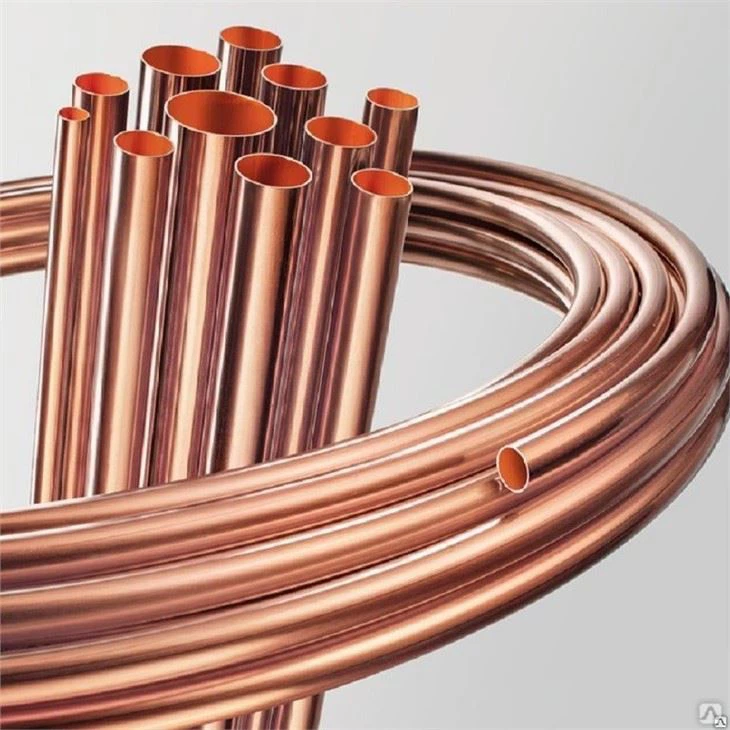

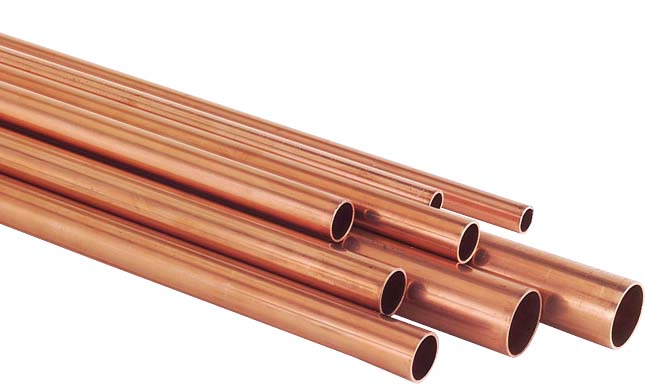

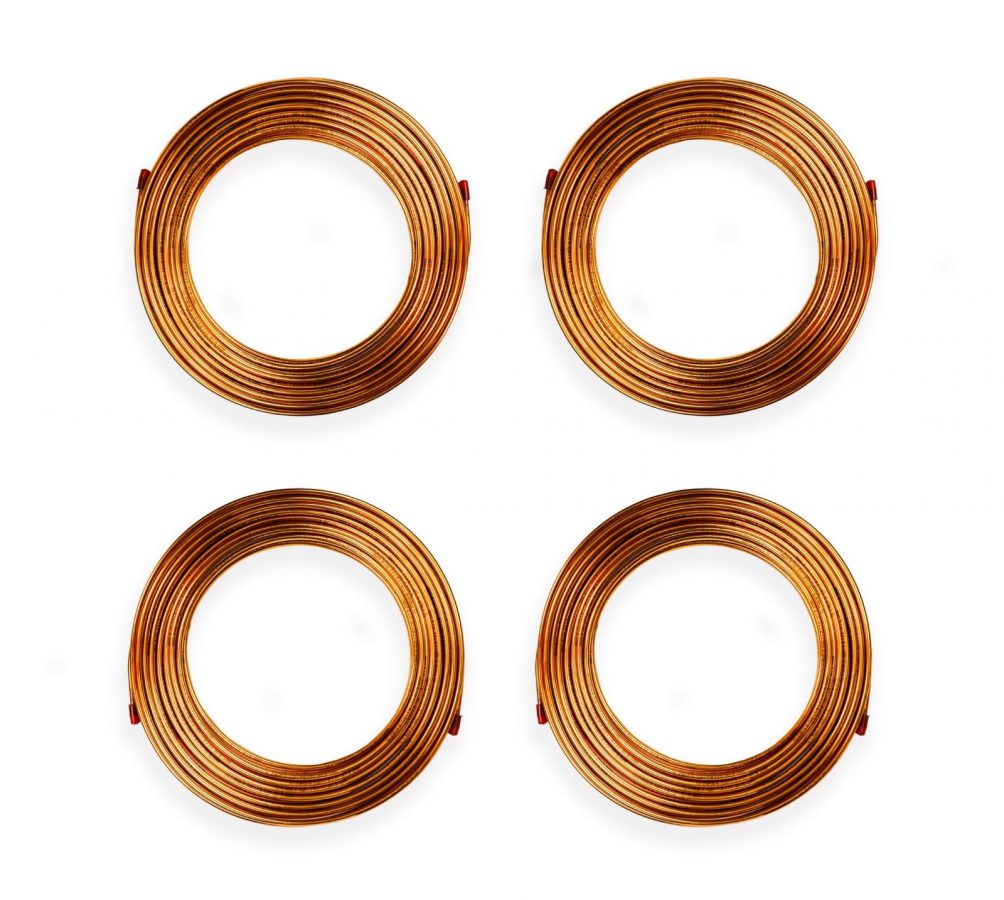

The copper tubes offered by Copper & Hardware are designed to meet the requirements of air conditioning, refrigeration, plumbing, and gas distribution systems. Manufactured according to European standards EN 12735-1 and EN 1057, and approved by SONELGAZ, these tubes guarantee a copper purity greater than 99.9%, ensuring optimal thermal conductivity and enhanced corrosion resistance.
Reliability and Longevity
- High resistance to internal and external corrosion
- Long-term dimensional stability
- Service life exceeding 50 years under normal usage conditions
Material Purity
- Phosphorus-deoxidized copper (Cu-DHP) with over 99.90% purity
- Clean, smooth, and degreased inner surface
- Compliant with international standards EN 1057 (sanitary/gas) APPROVED
Withstands extreme temperatures: from -100 °C to +200 °C
High pressure resistance depending on wall thickness and diameter

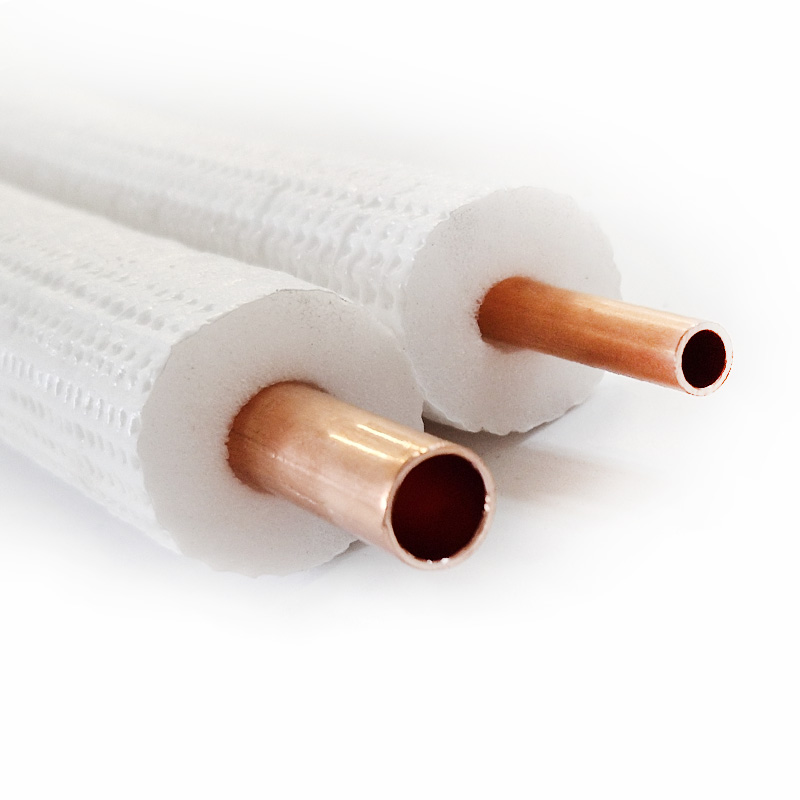

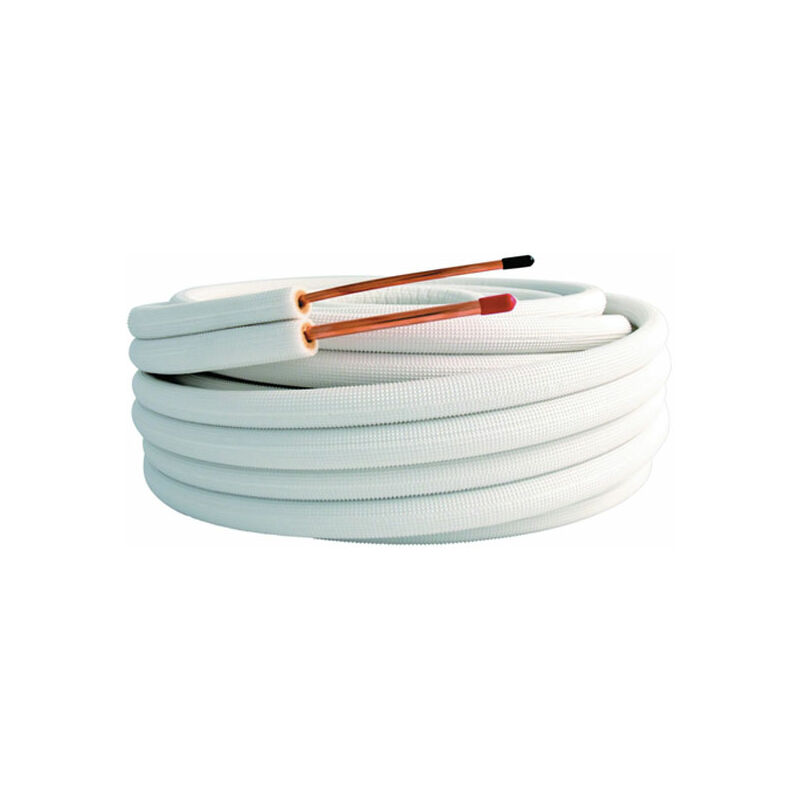

SMARTSPLIT MONO / TWIN / ANTI-UV Recuit enroulé, dimension des tubes en pouces avec pellicule de
protection PE blanche (Anti-UV grise).
| N° Réf | Ø Extérieur (″) | Configuration | Longueur (M)* | Épaisseur isolant (mm)** | Pression maximale (Bar) |
|---|---|---|---|---|---|
| M14-20 | 1/4″ | MONO | 20 | 8 à 9 | 85 |
| M38-20 | 3/8″ | MONO | 20 | 8 à 9 | 55 |
| M12-20 | 1/2″ | MONO | 20 | 8 à 9 | 45 |
| M58-20 | 5/8″ | MONO | 20 | 8 à 9 | 40 |
| M34-20 | 3/4″ | MONO | 20 | 8 à 9 | 40 |
| T1438-20 | 1/4″-3/8″ | TWIN | 20 | 8 à 9 | 85-55 |
| T1438-50 | 1/4″-3/8″ | TWIN | 50 | 8 à 9 | 85-55 |
| T1438-100 | 1/4″-3/8″ | TWIN | 100 | 8 à 9 | 85-55 |
| T1412-20 | 1/4″-1/2″ | TWIN | 20 | 8 à 9 | 85-45 |
| T1412-50 | 1/4″-1/2″ | TWIN | 50 | 8 à 9 | 85-45 |
| T1412-100 | 1/4″-1/2″ | TWIN | 100 | 8 à 9 | 85-45 |
| T5838-20 | 5/8″-3/8″ | TWIN | 20 | 8 à 9 | 40-55 |
| T3458-20 | 3/4″-3/8″ | TWIN | 20 | 8 à 9 | 40-55 |
